Mining Projects
Overview
       The   use   of   air   transport   in   mining   development   started   early   in   Canada.   Bush   planes,   like   the Beaver   aircraft,   were   crucial   to   the   development   of   gold,   silver   and   nickel   mining   in   northern Quebec, Ontario and Manitoba.
       Air   transport   enabled   people   and   equipment   to undertake   resource   exploration   and   development in    areas    that    are    virtually    inaccessible.    Roads and   railway   lines   were   eventually   built   to   the richest    of    these    deposits.    But    even    today, Canada    has    the    renown    of    being    the    largest single market for helicopter services.
       Despite   their   success,   bush   planes   and   helicopters   have   limitations   in   both   payload   and   flight distance.   Development   of   large-scale   mines   or   energy   exploitation   was   only   possible   in   the southern fringes of the north where rail lines or road links could be built economically.
         Many    types    of    cargoes    are    required    for    mine    development    and    operations.    The    main categories    include    construction    materials,    fuel,    equipment,    machinery,    cement,    explosives, camp   supplies,   food,   etc.   Fuel   is   the   largest   single   input   requirement   that   limits   northern development.   Supply   shortages   of   some   mining   provisions   may   be   a   nuisance,   but   a   fuel shortage   can   be   a   catastrophe.   A   mine   that   is   forced   to   shutdown   its   concentrator   for   lack   of fuel   may   never   be   re-opened.   The   camp   would   face   some   very   significant   safety   issues   without heat and electricity.
         Transporting    fuel    is    costly    and environmentally   risky.   Typically   fuel   is transported   in   bulk   using   rail,   truck   or barges.    Mines    that    have    no    railway, gravel    roads    or    marine    access    must operate   using   ice   roads   during   a   short winter season.

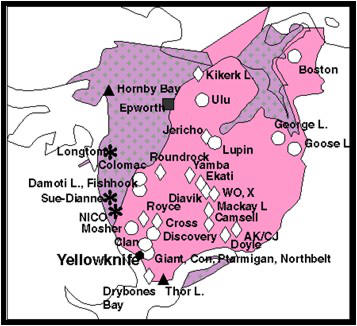

       Known   mineral   deposits   and   operating mines   near   Yellowknife,   NWT   is   identified on   Map   1.   A   seasonal   ice   road   serves   two operating   mines   and   a   third   mine   under re-development.   Two   of   the   properties   are diamond   mines   (Ekati   and   Diavik)   and   the third is a gold property (Lupin).
       These   mines   require   approximately   200   million   litres   of   fuel,   annually.   The   years   supply   of fuel   is   trucked   over   an   ice   road   that   operates   for   a   12-16   week   period.   In   addition   to   the   fuel,   a whole   years   supply   of   grinding   balls,   explosives,   plant   supplies,   non-perishable   camp   supplies, etc.   must   be   moved   over   the   400-kilometer   ice   road.   The   transportation   cost   for   fuel   is   about $40   million.   The   total   cost   for   all   freight,   including   building   and   maintaining   the   ice   road,   would be much higher.
       The   capacity   of   the   ice   roads   out   of   Yellowknife   could   easily   be   reached   if   the   season shortens,   one   of   the   mines   expands   (which   is   a   realistic   possibility   for   Lupin),   or   another property   tries   to   connect   to   the   existing   road.   Adding   more   lanes   over   the   lakes   could   extend capacity, but ultimately, safety concerns would impose an upper limit on traffic.
Transportation Challenges Affecting Mining in the Territories
       Diamond   and   gold   mines   require   large   volumes   of   fuel   and   other   supplies   to   be   trucked   in   to their   operations,   but   the   monthly   output   can   be   carried   out   by   air.   This   is   not   the   case   for   base metal   mines   (copper,   zinc,   nickel,   etc.)   that   have   much   larger   volumes   of   outbound   materials   to transport.   This   means   that   for   economic   operations,   they   have   better   transportation   service.   An example   is   the   undeveloped   Izok   Lake   discovery   that   is   located   in   central   Nunavut.   This   mineral deposit   is   of   world-class   proportions.   The   grade   of   zinc,   lead,   copper   and   gold   (16.5   million tones)   would   have   been   mined   long   ago,   if   it   were   accessible.   This   property   is   owned   by   a   large publicly    traded    international    mining    company    (Inmet    Mining)    would    produce    350,000    to 400,000   tons   of   concentrate   annually   and   employ   250   persons.   A   pre-feasibility   study   suggests that the mine would have a minimum life of 13 years based on known reserves.
       Several   major   mining   companies   have   considered developing   the   Izok   Lake   reserve   but   all   have   failed   to overcome    the    transportation    challenges    associated with   economically   moving   mining   supplies,   principally fuel, into the mine site and concentrates back out.
       Unlike   a   diamond   or   gold   mine   where   the   finished product   can   be   brought   out   in   a   small   airplane   on   a weekly   basis,   base-metal   mines   have   to   stockpile   their inventories   for   9   to   10   months.   In   addition   to   the direct   costs   of   ice   roads,   the   indirect   costs   of   financing inventories   contribute   to   the   total   logistics   costs   of   the mines.    Inmet    provided    the    following    comparative costs.
         Mining   companies   have   examined   many   creative   solutions   to   the   Izok   Lake   transportation dilemma.   Considerable   study   was   made   of   building   a   deep-water   port   on   the   north   shore   of   the continent   at   Bathurst   Inlet.   This   port   would   be   the   terminus   for   a   265-kilometer   all-weather road   to   the   mine.   The   cost   of   constructing   a   deep-water   port   and   building   the   road   is   estimated to be $250 million.
       In   addition   to   transporting   the   concentrates   to   a   point   where   they   can   be   shipped   to   a smelter,   there   is   a   requirement   to   haul   fuel   and   supplies   into   the   mine.   Also,   for   an   air   only option   to   be   feasible,   the   aircraft   must   also   be   able   to   transport   the   equipment   and   construction materials   to   site   as   part   of   the   facilities   construction.   An   Inmet   representative   has   estimated that   to   be   competitive   with   ground   transportation,   excluding   the   cost   and   maintenance   of   the road, the airship would have to offer a price of $50/ton.
            Isok   Lake   is   only   one   example   of   where   transportation   has   prevented   a   mine   from   being developed.   The   lack   of   access   from   mining   sites   to   conventional   transportation,   such   as   a   port, is   widespread.   In   an   attempt   to   resolve   this   issue,   the   Federal   Government   and   the   mining companies   with   interests   in   the   area   sponsored   a   $6   million   study   to   consider   developing   an   all- weather   road   that   would   connect   with   the   existing   ice   roads.   In   addition   to   the   commercial aspects   of   this   project,   there   are   important   social   issues.   Who   will   pay   for   the   road?   Do   the economic   benefits   offset   environmental   impacts?   How   will   a   road   affect   the   aboriginals   living   in the area?
Skyfreighter Canada Ltd
